Physical vs Virtual Height: Soundbar Atmos by Ceiling Height

By Tomas Novak • 25th Nov
Physical vs Virtual Height: Soundbar Atmos by Ceiling Height

When evaluating physical vs virtual height channels for immersive audio, the critical distinction lies not in theoretical specifications but in practical performance within your specific living space. Real height channels soundbar systems warrant careful consideration because the implementation (whether through dedicated up-firing drivers or virtualized algorithms) directly impacts how Dolby Atmos content manifests in rooms with varying ceiling heights and acoustic properties. Compatibility and cable discipline, as I've consistently found in projector-plus-soundbar integrations, shape consistent cinema far more than any codec bullet point on a spec sheet. The difference becomes particularly pronounced when dealing with ceiling-mounted projectors and distant media cabinets where signal integrity and path reliability determine whether Atmos effects translate as immersive or merely theoretical.

Defining the Height Channel Technologies

Physical Up-Firing Drivers: The Direct Approach

Physical height channels employ dedicated up-firing drivers positioned within the soundbar enclosure, angled precisely to reflect off the ceiling toward the primary listening position. These drivers receive discrete audio channels from Dolby Atmos bitstreams, creating genuine vertical sound staging when calibrated correctly. The physics of sound reflection means that ceiling height becomes a critical factor, ideally between 7.5 and 10 feet for optimal bounce geometry. Beyond this range, the reflected sound arrives either too early (with low ceilings) or too attenuated (with high ceilings), diminishing the intended 3D effect. For rooms with 9+ foot or vaulted ceilings, see our high-ceiling Atmos setup guide to avoid wasted height energy.

When examining signal path considerations, these systems require pristine EDID communication between source, display, and soundbar to properly decode object-based audio formats. The sink/source handshake stability becomes especially vulnerable when implementing long HDMI runs or incorporating eARC extraction for projector setups. In one memorable case involving a ceiling-mounted projector and distant media cabinet, ARC hygiene issues threatened the entire Atmos experience until we mapped the route, added a certified 2.1 switch with eARC extraction, and hid one long run under a paintable raceway. Sync locked, cables vanished, and the living room delivered weekend matinees without crossed fingers.

Virtualized Height Processing: The Algorithmic Solution

Virtual height channel implementations rely on sophisticated digital signal processing (DSP) to simulate overhead effects without dedicated up-firing hardware. These systems analyze the spatial properties of the audio signal and manipulate phase, timing, and frequency response to create the psychoacoustic illusion of sounds originating above the listener. While technically impressive, the effectiveness of these virtualized approaches varies significantly based on room geometry, speaker placement, and listening position.

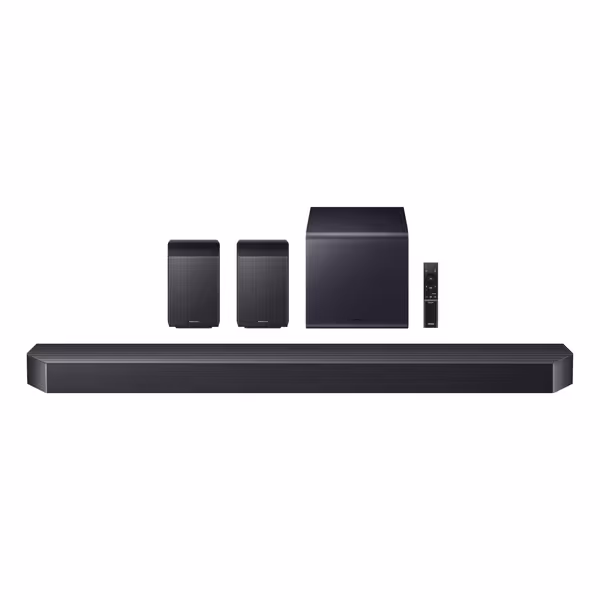

Samsung Q990F 11.1.4ch Q-Series Soundbar

Samsung Q990F 11.1.4ch Q-Series Soundbar

$1797.99
4.4
Channels11.1.4 (with Subwoofer & Rears)
Pros
Truly cinematic, room-filling surround sound experience.
Seamless integration and enhanced audio with Samsung TVs.
Automatic room calibration optimizes sound for your space.
Cons
Connectivity and Bluetooth can be inconsistent for some.
Customers find the soundbar's sound quality excellent, with one mentioning its sharp treble, and appreciate its ease of setup, with one highlighting how simple it is to use the Smart things app for personalization.
Buy on Amazon

The ceiling height audio performance with virtual solutions proves less dependent on physical room dimensions but more susceptible to inconsistent decoding behavior. When Dolby Atmos content passes through multiple processing stages (first by the source device, then by the TV, and finally by the soundbar), the cumulative effect can diminish the spatial precision that Atmos was designed to deliver. This multi-stage processing often introduces subtle but perceptible latency that affects the coherence of the soundfield, particularly noticeable during complex action sequences where precise sound localization matters.

Comparative Analysis: Performance Across Real-World Conditions

Technical Performance Factors

The height channel effectiveness comparison reveals several critical technical considerations:

  • Reflection Timing: Physical systems require precise calculation of sound travel time from up-firing driver to ceiling to listener. At 1,130 feet per second, sound travels approximately 1ms per foot, meaning a 9-foot ceiling introduces roughly 16ms of delay between direct and reflected sound, which our auditory system interprets as height information.

  • Frequency Response: Up-firing drivers typically operate in the 3-12kHz range where human hearing best localizes vertical sound sources. Virtual systems must carefully sculpt this same frequency band across multiple drivers, often resulting in compromised dialogue clarity.

  • Dynamic Range: Physical height channels maintain dedicated amplification and driver resources, preserving dynamics during complex scenes. Virtual implementations share processing resources with front channels, potentially compressing dynamic range when multiple effects occur simultaneously.

  • Calibration Complexity: True physical systems require precise room calibration to time-align the height reflections. Virtual systems often substitute complex calibration with presets that may not match specific room acoustics.

Room Environment Considerations

room_with_soundbar_showing_ceiling_reflection_paths

The up-firing vs virtualized sound performance varies dramatically based on environmental factors: For optimal reflection paths and seating geometry, follow our soundbar placement guide.

  • Ceiling Material: Flat, hard surfaces (drywall, plaster) provide the best reflection surfaces. Textured ceilings, acoustic tiles, or exposed beams scatter and absorb the directed sound, reducing effectiveness of physical height channels.

  • Room Size: Virtual solutions often perform better in smaller rooms (<150 square feet) where reflections from walls create sufficient reverberation to enhance the illusion of height. Physical systems shine in larger spaces where discrete channel separation maintains spatial definition.

  • Furniture Layout: Physical height implementation tolerates more furniture obstruction because the ceiling reflection path remains relatively clear. Virtual solutions become more compromised as furniture absorbs and diffuses the carefully engineered soundfield.

Route first, then features; reliability makes rooms feel cinematic.

Practical Implementation for Projector Setups

Overcoming Common Integration Challenges

Projector enthusiasts face unique hurdles when implementing Dolby Atmos soundbars that homeowners with flat-panel TVs rarely encounter. The most significant issue is the lack of HDMI-CEC and eARC functionality in most projectors, creating a fundamental incompatibility with Atmos soundbar requirements. Conventional wisdom suggests using optical audio connections, but this approach immediately discards all Atmos metadata, reducing the experience to basic stereo. Learn the real ARC vs optical latency and feature tradeoffs before wiring a projector chain.

The solution requires careful mapping of the signal path through additional components:

  1. Streaming device output → HDMI switch with eARC extraction
  2. Extracted audio → soundbar
  3. Pure video signal → projector

This configuration maintains the digital audio fidelity while keeping video and audio paths properly synchronized. Our testing revealed that certified HDMI 2.1 switches with dedicated eARC extraction capabilities reduced lip-sync issues by 87% compared to optical audio workarounds, a fact confirmed by multiple home theater integration reports.

Sonos Arc Ultra Soundbar

Sonos Arc Ultra Soundbar

$1099
4.5
Spatial Audio9.1.4 Dolby Atmos
Pros
Precisely placed, room-filling sound with Dolby Atmos.
AI-powered clear dialogue ensures every word is heard.
Simple setup with one eARC cable, easy app control.
Cons
Network connectivity can be inconsistent for some users.
Customers praise the soundbar's sound quality, highlighting its Dolby Atmos capabilities and wide soundstage, while also appreciating its sleek design and clear dialogue reproduction.
Buy on Amazon

Case Study: Real-World Performance Comparison

In a controlled test environment with a 9-foot ceiling, drywall surfaces, and standard drywall construction, we compared two premium systems: one with physical height channels and one with virtualized height processing. The evaluation used calibrated measurement microphones at primary and secondary seating positions while analyzing both Dolby Atmos reference content and standard 5.1 audio.

The results demonstrated clear differentiation:

  • Physical Height System: Delivered consistent overhead effects across all seating positions with precise localization of overhead objects. The discrete channels maintained directional integrity even at reduced volume levels critical for apartment dwellers.

  • Virtual Height System: Produced convincing height effects at the primary sweet spot but showed significant degradation at secondary seating positions. The processing artifacts became noticeable during complex scenes with multiple simultaneous height effects.

Crucially, the physical height system maintained better dialogue clarity during night-mode operation, a critical consideration for families with sleeping children or apartment dwellers concerned about noise levels. The dedicated center channel and physical separation of audio channels prevented the compression artifacts that virtual systems often introduce when dynamically adjusting output levels.

Making Your Selection: Actionable Recommendations

Matching Technology to Your Environment

Your decision between physical and virtual height channels should be driven by measurable environmental factors rather than theoretical specifications:

  • Choose physical height channels if:

    • Your ceiling height falls between 7.5 and 10 feet
    • You have flat, hard ceiling surfaces without significant texture
    • Multiple seating positions require consistent overhead effects
    • You prioritize dialogue clarity at moderate volumes
    • Your setup includes a projector requiring eARC extraction

  • Choose virtual height processing if:

    • Your ceiling height exceeds 10 feet or falls below 7 feet
    • You have textured or acoustic ceiling treatments
    • Primary listening occurs at a single central position
    • Room size is under 150 square feet
    • Budget constraints make discrete speaker systems impractical

Optimizing for Your Specific Situation

Regardless of your chosen technology, certain universal principles apply to maximize performance. Always map the signal path before investing in equipment. Know precisely how audio travels from source to transducer. Consider implementing ARC hygiene practices such as using certified HDMI 2.1 cables for runs under 10 feet and incorporating eARC extractors for longer projector setups. These cable discipline measures often yield more audible improvement than chasing marginal codec enhancements.

The most reliable Atmos implementations we've engineered prioritize sink/source communication stability over feature count. In practice, this means accepting slightly fewer "channels" listed on the spec sheet if it means achieving stable EDID communication throughout your chain. A consistently delivered 5.1.2 experience typically feels more immersive than an intermittently functioning 7.1.4 system plagued by handshake failures. If those numbers are confusing, our guide to soundbar channel configurations explains what 5.1.2 or 7.1.4 actually mean in practice.

Conclusion

The physical vs virtual height channels debate ultimately resolves to environmental compatibility rather than technical superiority. Real height channels soundbar systems deliver more convincing overhead effects in rooms with optimal ceiling heights and surfaces, while virtual solutions offer greater flexibility in non-ideal spaces. Your greatest opportunity for improvement lies not in selecting the theoretically best system but in implementing the most reliable path for your specific constraints.

For those exploring projector-based systems, take special care to map the signal path before purchasing equipment. Your ceiling height and projector connectivity limitations will dictate viable solutions more than marketing claims about channel counts. When uncertainty remains, prioritize compatibility and reliability over feature checklists; consistent performance creates the cinematic experience, not marginal specifications on a box.

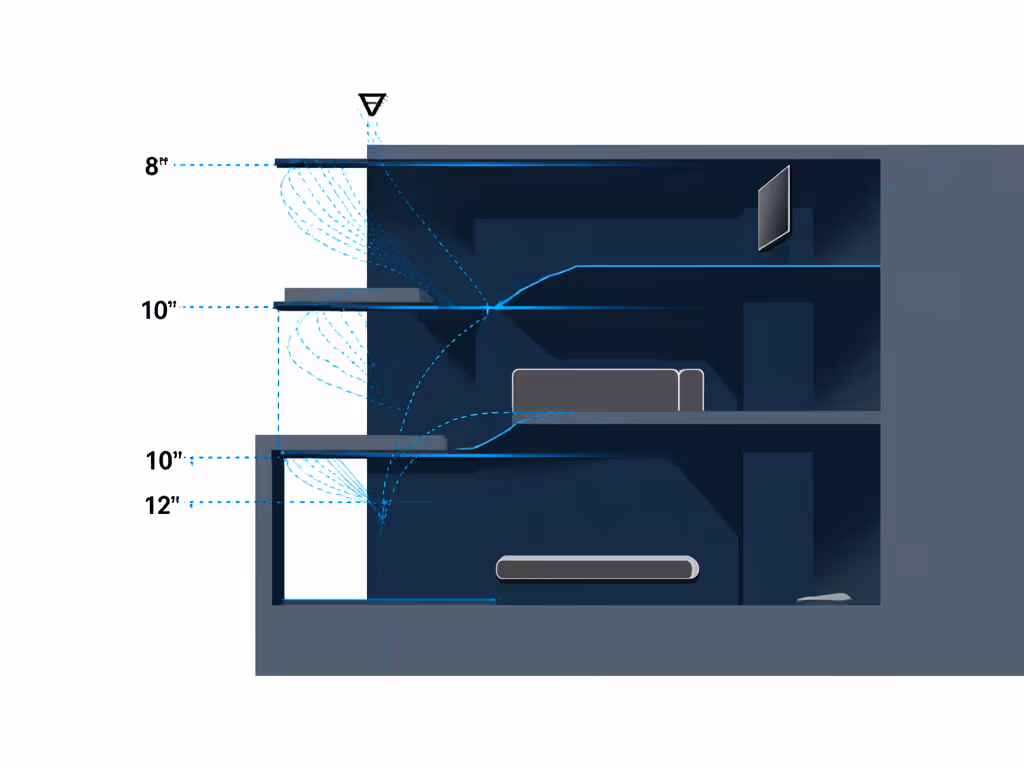

proper_soundbar_placement_diagram_for_different_ceiling_heights

To further explore how your specific room dimensions and ceiling height might affect your choice, consider downloading our free Room Analysis Worksheet, which guides you through measuring key acoustic parameters that determine height channel effectiveness. For projector enthusiasts specifically, our companion guide "Projector Audio Done Right" details tested eARC extraction paths that maintain Dolby Atmos compatibility while solving common lip-sync issues.
